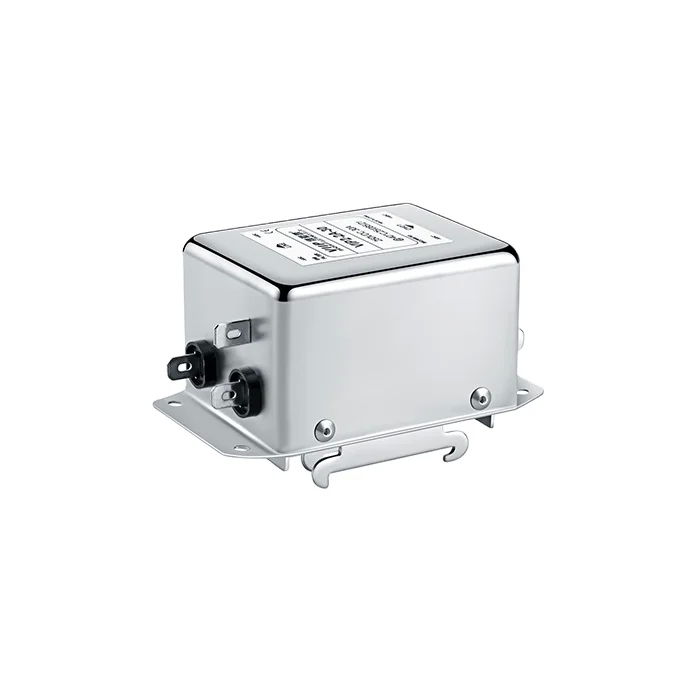

110V 250V Input AC EMI Filter with Low Pass Transfer Function and Compact Structure for Building Automation

Nome da marca:	VIIP
Número do modelo:	VIP3-41A
MOQ:	1pcs
preço:	5USD
Detalhes da embalagem:	333318
Condições de pagamento:	T/T, Western Union

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

CHINA

Certificação:

CE TUV UL ROHS REACH

Impedância de entrada:

MINUTO 500VDC/100MOHM

Tensão nominal:

110/250VAC

Corrente classificada:

0.5A-800A

Tipo:

Filtro EMC

Perda de inserção:

60dB-90dB

Certificação:

CE ROHS,CE CQC,UL.TUL

Habilidade da fonte:

2000 PCes no prazo de 10-15 dias

Destacar:

Low Pass Transfer Function AC EMI Filter

Compact Structure EMI Filter

High Insertion Loss EMC Filter

Descrição do produto

110V 250V Input AC EMI Filter For Building Automation TUV 20A

Input AC EMI Filter For Building Automation Print Machine Hardware Equipment

Quick Detail

Model Number: VIP4-1A-20
Type: EMI Filter
Place of Origin: China
Brand Name: VIIP
Transfer Function: Low Pass
Nominal Center Frequency: 150KHz-30MHz
Input Impedance: 50Ω
Insertion Loss: 20~100dB
Item: Low Pass EMI Filter
Rated Voltage: 440V
Rated Current: 0.5A-800A
Environmental Temp: 50°C
Temperature Range: 25 / 085 / 21
Operating Frequency: 50/60HZ
Line to Ground: 2250VDC or 2000VAC
Certificate: UL TUV ISO9001 CE ROHS

Description

Suitable for three phase three line power supply. Compact structure, simple and time-saving installation, specially suitable for applications with limited space, highly cost effective.

Specifications

Applications

Widely used in various electrical units with connection style, such as print machine, packing machine, textile equipment, industry air conditioner, UPS, medical equipment, etc.

Our Advantages

(1) Sales Network

Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.

(2) Hardware Equipment

The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.

(3) Integrated Technical Service

Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.

(4) Excellent Corporate Culture

The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements.

Etiquetas:
